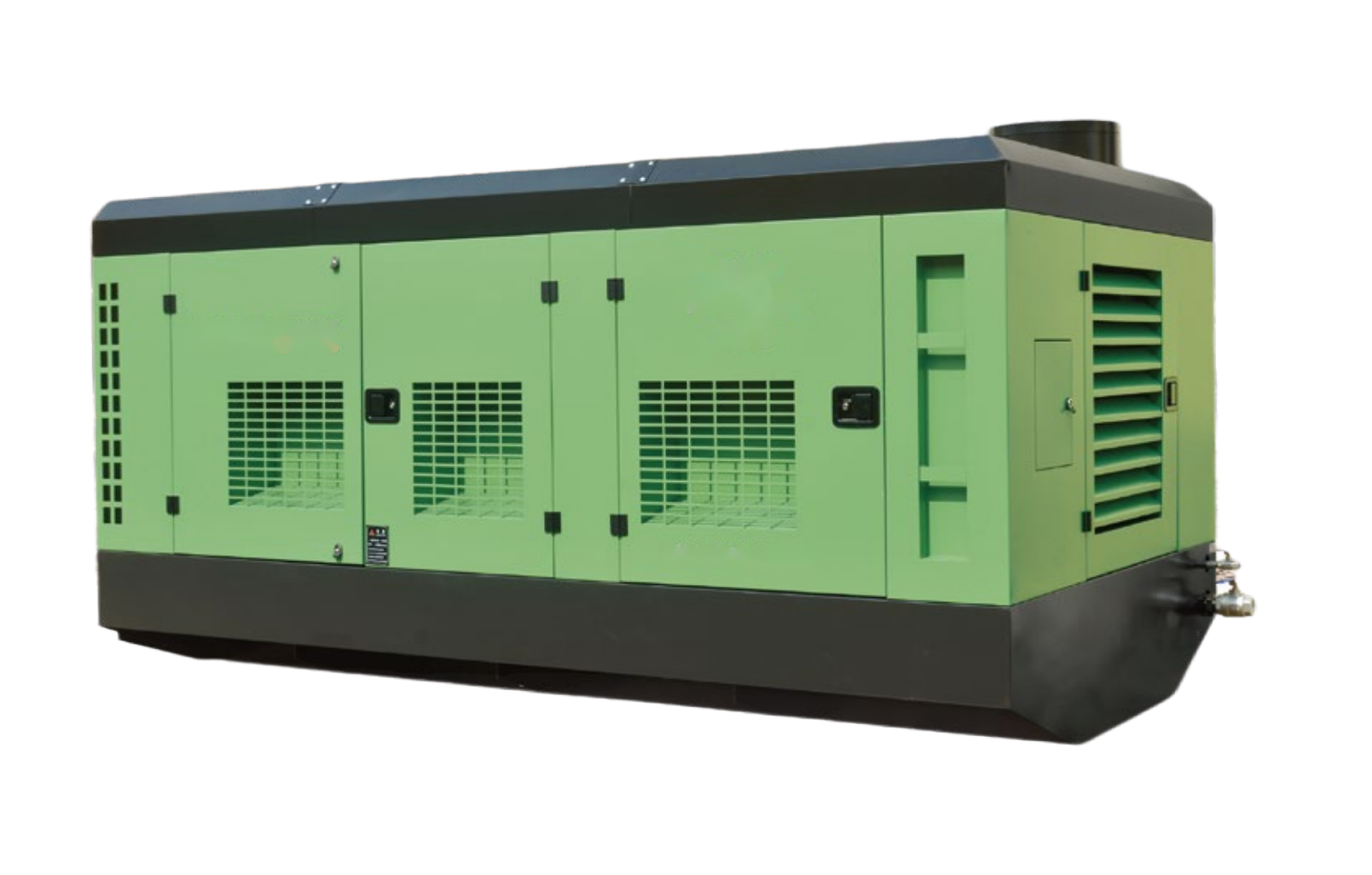

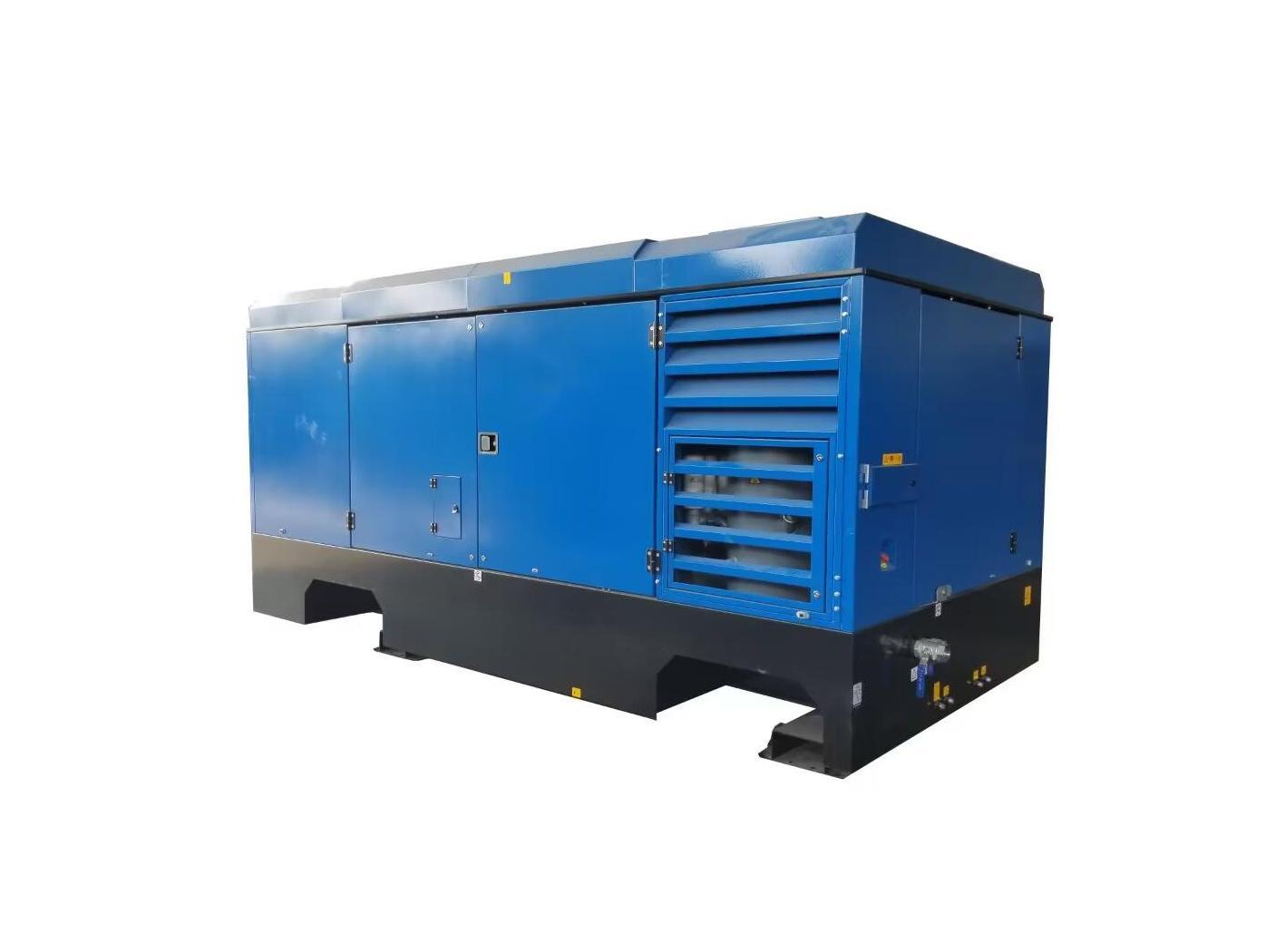

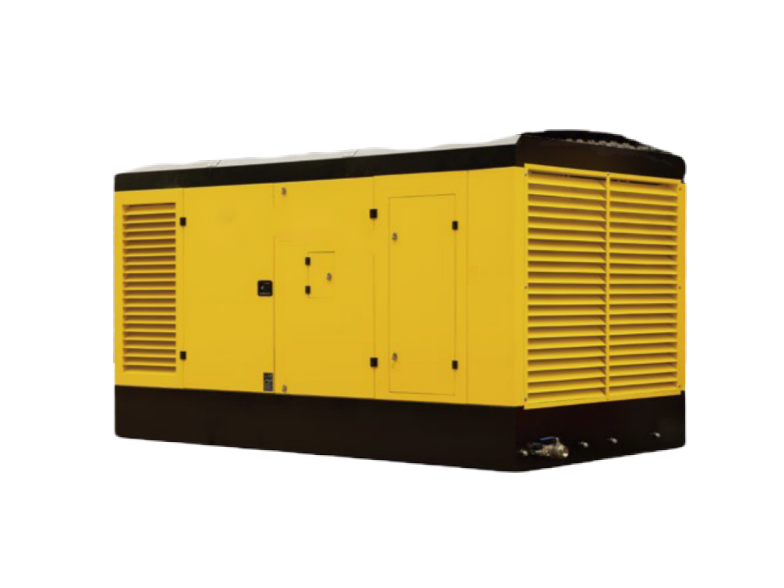

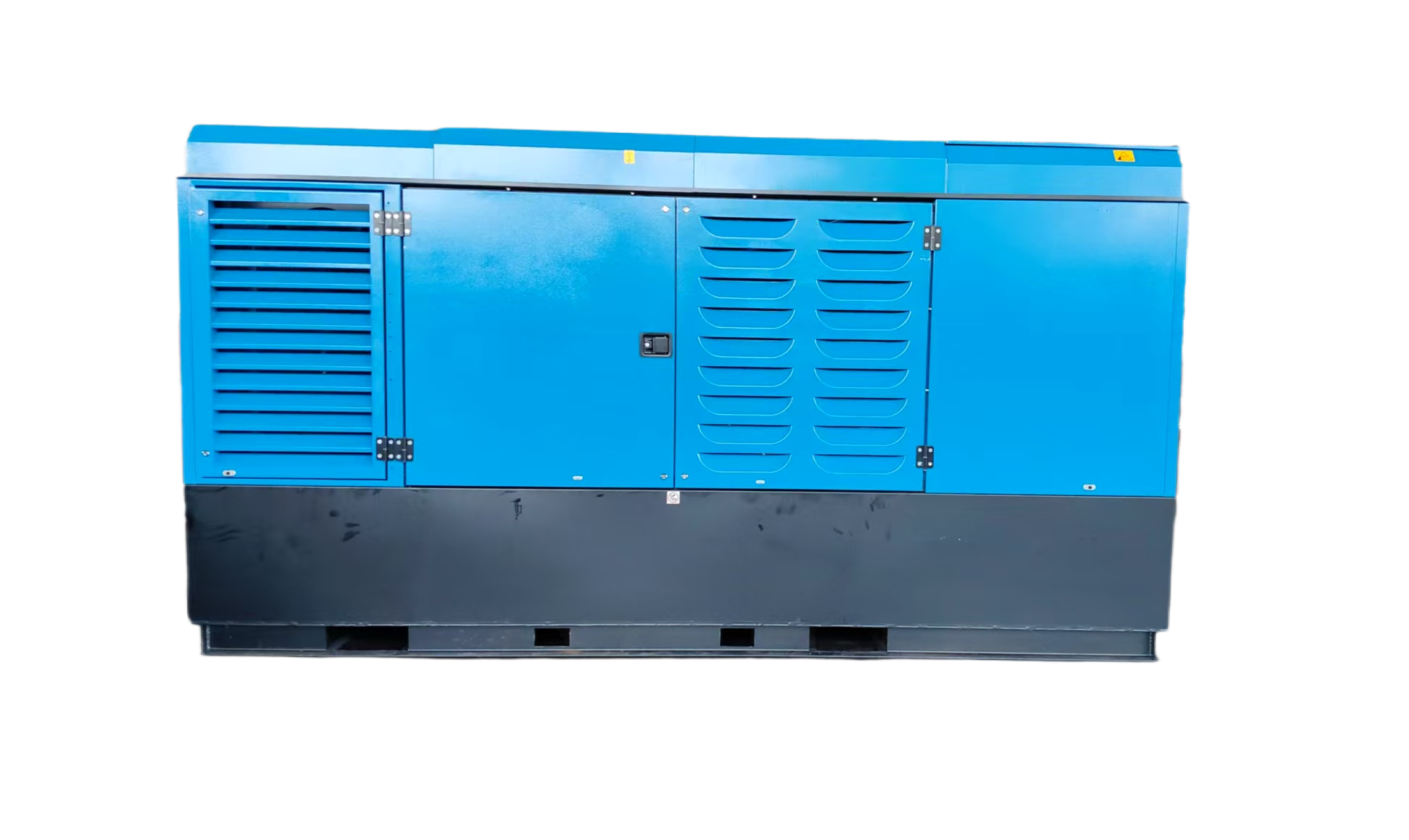

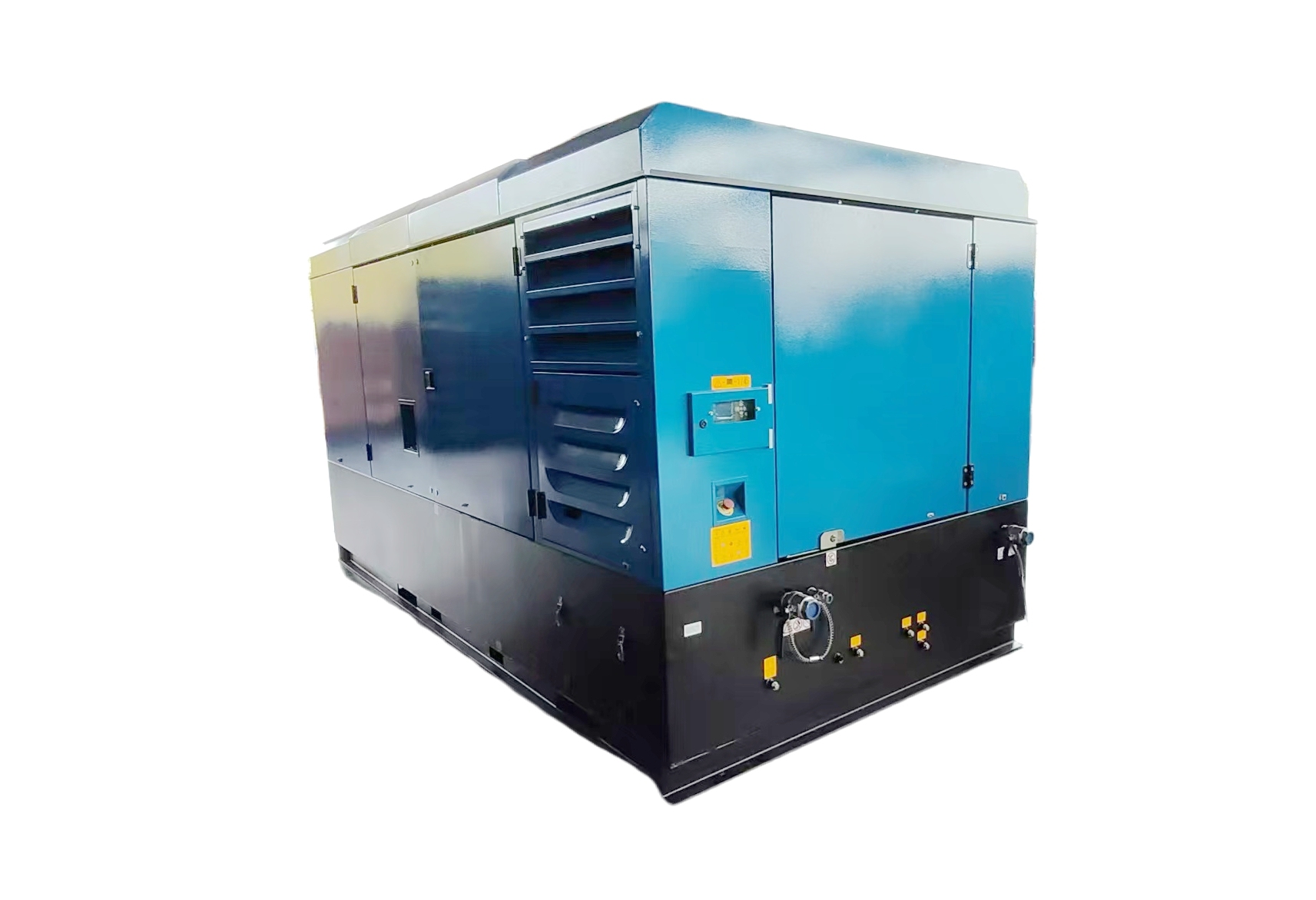

Diesel Air Compressor

Application: water wellsrock drills, rock drills,polymer minerals, limestone，metal minerals,sandblasting,cutting boards, drainage pumps and walk-behind breakers for construction buildings,drill holes, core drilling, blasting, snoring, hammering, tamping, pumping, sawing, riveting, pneumatic pumps
Working pressure: 7-34bar
Air flow range: 5-45m3/min
Max. ambient temperature:50°C (122°F)
GET A QUOTE
  • Diesel Air Compressor
  • Diesel Air Compressor
  • Diesel Air Compressor
  • Diesel Air Compressor
  • Diesel Air Compressor

  • Specification 1

  • Specification 2

  • Specification 3

  • Specification 4

Type 079-7 105-12 110-12 125-7 130-15 170-17 215-12 235-9 180-19 215-21
Working pressure (bar) 7 12 12 7 15 17 12 9 19 21
Flow (m3/min) 7.9 10.5 11 12.5 13 17 21 23.5 18 21.8
Compressor stage 1 1 1 1 1 1 1 1 2 2
Noise level(at 7m distance, dBA) 79±3 79±3 79±3 79±3 79±3 79±3 79±3 79±3 79±3 79±3
Fuel tank capacity (L) 185 185 185 185 190 300 300 300 300 512
Compressor oil capacity (L) 26 26 26 26 30 55 55 55 55 65
Outlet valves,qty x size 1×G1 1/2 3×G3/4 1×G1 1/2 3×G3/4 1×G1 1/2 3×G3/4 1×G1 1/2 3×G3/4 1×G1 1/2 3×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4
Engine
Engine brand Gummins Yuchai Gummins Gummins Gummins Gummins Gummins Gummins Gummins Gummins
Engine model 4BTA3.9-C80 YC4A125Z-T20 4BTAA3.9-C125 4BTAA3.9-C125 6BTAA5.9-C205 6CTA8.3-C260 6CTA8.3-C260 6CTA8.3-C260 6CTA8.3-C260 6LTAA8.9-C325
Engine power (Kw) 60 92 93 93 153 194 194 194 194 232
Max. engine speed（rpm） 1850 2300 2300 2300 2000 2000 2000 2000 2060 2000
Unloading engine speed (rpm) 1300 1400 1400 1400 1400 1500 1500 1500 1400 1300
Engine type Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical
Dimension＆Weight-BOX mounted
Length (mm) 2235 2319 2235 2235 2750 2726 2726 2726 3020 3850
Width (mm) 1350 1300 1350 1350 1500 1605 1605 1605 1650 1800
Height (mm) 1650 1556 1650 1650 1900 1850 1850 1850 2140 2200
Weight (kg) 1300 1300 1300 1300 1790 2380 2380 2380 2800 4250
Dimension＆WeightWith undercarriage
Length (mm) 2800 3640 2800 2800 3000 4365 4365 4365 4470 5620
Width (mm) 1790 1790 1790 1790 1990 1950 1950 1950 1960 2040
Height (mm) 1930 1850 1930 1930 2200 2260 2260 2260 2535 2660
Weight (kg) 1550 1550 1550 1550 1880 2685 2685 2685 3050 5200
Type 050-7 150-15A 150-15B 180-20 250-12 260-21 210-25 320T 350-34 400-25
Working pressure (bar) 7 15 15 20 10 21 25 26 34 25
Flow (m3/min) 5 15 15 18 25 26 21.5 32 35 40
compressor stage 1 1 1 2 1 2 2 2 2 2
Noise level(at 7m distance, dBA) 70±3 83±3 83±3 83±3 79±3 83±3 83±3 83±3 83±3 83±3
Fuel tank capacity (L) 67 180 180 325 512 450 450 510 710 710
Compressor oil capacity (L) 8 30 30 60 65 75 75 75 105 105
Outlet valves,qty x size 3×G3/4 1×G3/4 1×G1 1/2 1×G3/4 1×G1 1/2 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4
Engine
Engine brand Kubota Gummins Gummins Gummins Gummins Gummins Gummins Gummins Gummins Gummins
Engine model V1505 T QSB5.9-C190 QSB5.9-C190 QSB6.7-C260-32 QSB8.9-C325-30 QSL8.9-360-30 QSL8.9-360-30 QSL8.9-360-32 QSZ13-C550-30 QSZ13-C500-30
Engine power（Kw） 33 142 142 194 242 264 264 294 410 410
Max. engine speed（rpm） 3000 2080 2080 2000 2000 1900 1610 1950 1750 1700
Unloading engine speed（rpm） 1850 1400 1400 1300 1300 1300 1300 1300 1300 1300
Engine type Mechanical Electronical Electronical Electronical Electronical Electronical Electronical Electronical Electronical Electronical
Dimension＆Weight-BOX mounted
Length (mm) 1848 2750 2750 3200 3985 3520 3520 3500 4350 4350
Width (mm) 1040 1500 1500 1670 1800 1800 1800 1800 2100 2100
Height (mm) 1154 1900 1900 1980 2200 2150 2150 2250 2170 2170
Weight (kg) 650 1790 1790 3310 4235 3900 3900 4300 5150 5150
Dimension＆WeightWith undercarriage
Length (mm) 2700 3000 3900 4550 5260 5200 5200 5300 6120 6120
Width (mm) 1350 1990 1990 1770 1800 2250 2250 2250 2100 2100
Height (mm) 1310 2200 2200 2410 2630 2580 2580 2680 2570 2570
Weight (kg) 750 1880 1870 3920 4835 4200 4200 4700 5750 5750
Type 400-30 450-20 120-7 100-10 100-14 120-12 150-13A 150-13B 130-15 150-17
Working pressure (bar) 30 20 7 10 14 12 13 13 15 17
Flow (m3/min) 40 45 12 10 10 12 15 15 13 15
compressor stage 2 2 1 1 1 1 1 1 1 1
Noise level (at 7m distance,dBA) 83±3 83±3 81±3 81±3 81±3 83±3 83±3 83±3 83±3 87
Fuel tank capacity (L) 710 710 120 120 120 120 180 180 180 250
Compressor oil capacity (L) 105 105 26 26 26 75 30 30 30 45
Outlet valves,qty x size 1×G2 1×G3/4 1×G2 1×G3/4 1×G3/4 1×G11/2 1×G3/4 1×G11/2 1×G3/4 1×G11/2 1×G3/4 1×G11/2 1×G3/4 1×G11/2 1×G3/4 1×G11/2 1×G3/4 1×G11/2 1×G3/4 1×G2
Engine
Engine brand Gummins Gummins Yuchai Yuchai Yuchai Yuchai Yuchai Yuchai Yuchai Yuchai
Engine model QSZ13-C550-30 QSZ13-C550-30 YC4A130-H311 YC4A130-H311 YC4A130-H311 YC4A160-H300 YC6J190-T304 YC6J190-T304 YCA05190-T300 YC6J220-T300
Engine power（Kw） 410 410 96 96 96 118 140 140 140 162
Max. engine speed（rpm） 1850 1800 2300 2300 2300 2200 2080 2080 2000 2050
Unloading engine speed（rpm） 1300 1300 1400 1400 1400 1400 1400 1400 1500 1300
Engine type Electronical Electronical Electronical Electronical Electronical Electronical Electronical Electronical Electronical Electronical
Dimension＆Weight-BOX mounted
Length (mm) 4350 4350 2350 2350 2350 2330 2750 2750 2341 2861
Width (mm) 2100 2100 1300 1300 1300 1300 1500 1500 1384 1500
Height (mm) 2170 2170 1550 1550 1550 1600 1900 1900 1559 1971
Weight (kg) 5150 5150 1470 1470 1470 1470 1790 1790 1550 2000
Dimension＆WeightWith undercarriage
Length (mm) 6120 6120 2510 2510 2510 2400 3000 3965 3509 3000
Width (mm) 2100 2100 1790 1790 1790 1800 2000 1990 1790 2000
Height (mm) 2570 2570 1830 1830 1830 2120 2200 2178 1865 2190
Weight (kg) 5750 5750 1650 1650 1650 1560 1850 1920 1650 2200
Type 170-18 200-10 220-8 180-19 210-17 300-25 310-25 360-35 410EKON 455-20
Working pressure (bar) 18 10 8 19 17 25 25 35 30......18 20
Flow (m3/min) 17 20 22 18 21 30 31 36 32......41 45
compressor stage 2 1 1 2 2 2 2 2 2 2
Noise level (at 7m distance,dBA) 83±3 83±3 83±3 83±3 83±3 83±3 83±3 83±3 83±3 83±3
Fuel tank capacity (L) 300 250 250 300 300 450 500 850 850 850
Compressor oil capacity (L) 43 55 55 55 55 75 75 105 105 105
Outlet valves,qty x size 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4 1×G2 1×G3/4
Engine
Engine brand Yuchai Yuchai Yuchai Yuchai Yuchai Yuchai Yuchai Yuchai Yuchai Yuchai
Engine model YC6J220-T300 YC6A240-H301 YC6A240-H301 YC6A260-H300 YC6A260-H300 6MK400-H300 6MK400-H300 K16775-T300 K16775-T300 K16775-T300
Engine power（Kw） 162 176 176 191 191 295 295 570 570 570
Max. engine speed（rpm） 2000 1950 2050 2050 1900 1900 1900 1850 1500......1750 1800
Unloading engine speed（rpm） 1300 1200 1200 1200 1200 1300 1300 1300 1300 1300
Engine type Electronical Electronical Electronical Electronical Electronical Electronical Electronical Electronical Electronical Electronical
Dimension＆Weight-BOX mounted
Length (mm) 3200 2710 2710 2926 2926 3520 3840 3850 3850 3850
Width (mm) 1500 1635 1635 1660 1660 1670 1800 2100 2100 2100
Height (mm) 1800 2180 2180 1920 1920 2060 2250 2260 2260 2260
Weight (kg) 2300 2420 2420 3000 3000 3507 4550 4900 4900 4900
Dimension＆WeightWith undercarriage
Length (mm) 4155 4322 4322 4404 4404 5200 5260 5690 5690 5690
Width (mm) 2060 1950 1950 1950 1950 2116 2040 2100 2100 2100
Height (mm) 2180 2270 2270 2296 2296 2510 2690 2690 2690 2690
Weight (kg) 2500 2685 2685 3330 3330 4137 5150 5400 5400 5400
